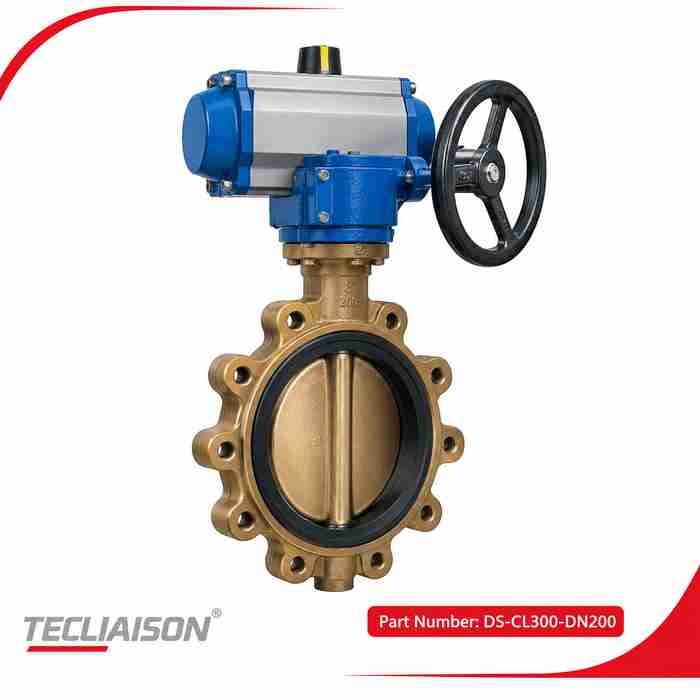

ORTON Butterfly Valve DS-CL300-DN200

The ORTON butterfly valve DS-CL300-DN200 is an 8-inch (DN 200) valve with an aluminium bronze body and disc, EPDM seat, lug end connections and bi-directional sealing. It supports ON/OFF service and has a pneumatic actuator. Contact Tecliaison for a quotation.

Independent sourcing & availability

Tecliaison Ltd is an independent industrial parts sourcing and supply business. We are not an authorised distributor, agent or representative of the manufacturers listed and are not affiliated with or endorsed by them. Brand names, trade marks, logos and part numbers identify the relevant manufacturers and products; all trade marks belong to their respective owners.

Product listings invite enquiries for sourcing and quotation. A listing does not confirm that an item is held in stock or currently available. Availability, price, lead time, specifications, product condition, origin and any applicable warranty are subject to written confirmation in our quotation. Please provide the exact part number and application details so suitability can be checked before ordering.

Brand:

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

10 People watching this product now!
  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

ORTON butterfly valve DS-CL300-DN200, 8-inch DN 200 control valve

ORTON Butterfly Valve DS-CL300-DN200 — 8-inch (DN 200), Series DS.

Product Overview

The ORTON Butterfly Valve DS-CL300-DN200 is an 8-inch (DN 200) control valve with a pneumatic actuator. It uses an aluminium bronze body and disc, an EPDM seat, and a bi-directional sealing design. The valve supports ON/OFF service and features lug end connections.

The valve has an ASME CL 300 pressure design for its end flanges. Its body and disc use ASTM 148 UNS C95800 material. The shaft uses ASTM B865 UNS N05500 AGED material. The valve follows API 598 leakage specifications.

Product Details

  • Manufacturer: ORTON
  • Product Type: BUTTERFLY VALVE
  • Manufacturer Part Number: DS-CL300-DN200
  • Series: DS
  • Size: 8 in
  • DN: 200
  • Body Material: ALUMINIUM BRONZE
  • Body Material Specification: ASTM 148 UNS C95800
  • Disc Material: ALUMINIUM BRONZE
  • Disc Material Specification: ASTM 148 UNS C95800
  • Seat Material: EPDM
  • Shaft Material Specification: ASTM B865 UNS N05500 AGED
  • End Connections: LUG
  • End Flange Design Specification: ASME B16.5
  • End Flange Pressure Design: ASME CL 300
  • Leakage Specification: API 598
  • Actuator Type: PNEUMATIC
  • Service: ON/OFF
  • Sealing Direction: BI-DIRECTIONAL
  • Operator Type: MANUAL HANDWHEEL
  • Valve Operation: WORM GEAR
  • Housing Material: NODULAR CAST IRON
  • Housing Material Specification: ASTM A536 GRADE 65-45-12
  • Worm Gear Material: NODULAR CAST IRON
  • Worm Gear Material Specification: ASTM A536 GRADE 70-50-05
  • Ambient Temperature Rating: -25 TO +80 °C
  • Ingress Protection: IP 65
  • Maximum Rim Pull Force: 350N
  • Maximum Handwheel Diameter: 800 mm

Quotation Information

Use the manufacturer name and part number ORTON DS-CL300-DN200 when requesting a quotation. Contact Tecliaison to ask about pricing and availability. Confirm your application requirements and the required valve configuration before placing an order.

Why Choose Tecliaison

Tecliaison provides product information to help buyers identify industrial components by manufacturer and part number. Share the details of the ORTON Butterfly Valve DS-CL300-DN200 with the Tecliaison team when requesting a quotation. This helps the team review your request against the product information supplied.

For additional details, consult the manufacturer’s official website and confirm any requirements that are not listed here.
