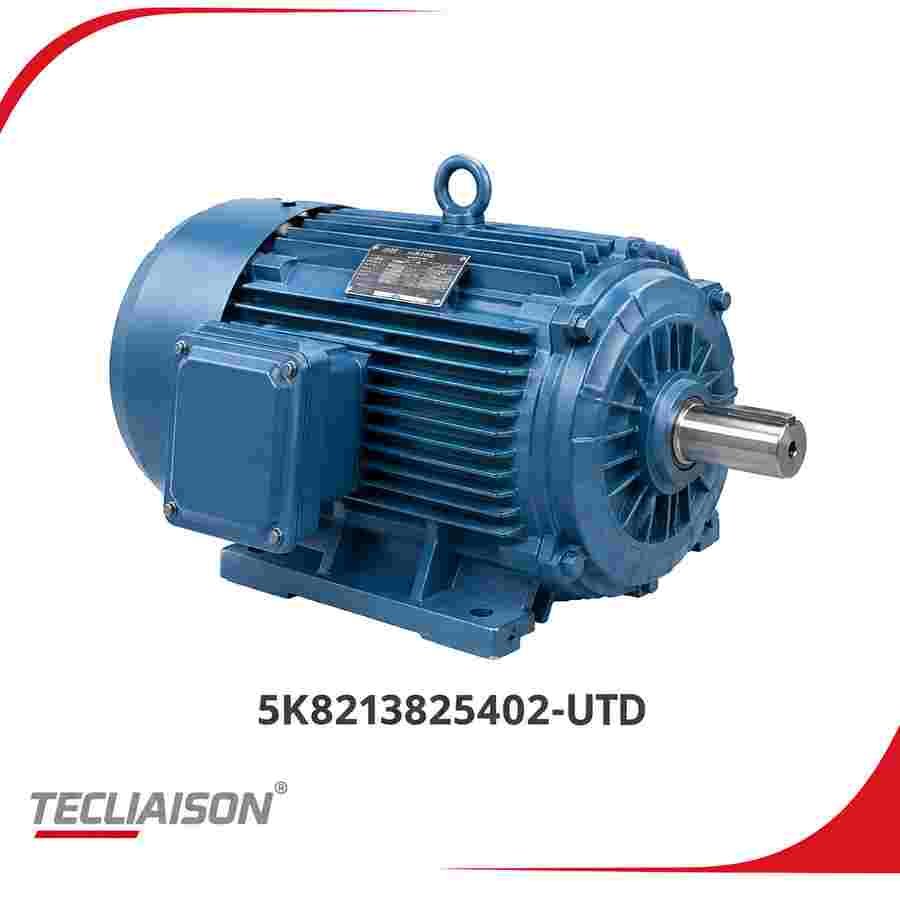

800 HP GE Motor – 5K8213825402-UTD

800 HP GE Motor, Model#5K8213825402-UTD

Product Overview

800 HP GE Motor is an electric AC motor listed with a power rating of 800 HP and a 3-phase electrical configuration. The supplied data gives a voltage of 2300/4000, frequency of 60 Hz, amperage of 177/102 A, and speed of 3570. The motor has frame 8211Z, WPI enclosure, a 1.15 service factor, and a foot mount.

The supplied shaft information is 60 MM DIA X 145 MM LG. The listed length is 1.5 M. The insulation is F, and the temperature rating is 90 DEG C. The supplied standard/specification is EN60034. Additional data states “FOR CRANKING (88CR).”

Product Details

• Manufacturer: GENERAL ELECTRIC (GE) (LM/FM)
• Product type: MOTOR,ELECTRIC, AC
• Model#: 5K8213825402-UTD
• P/N#: 100T7356P001
• P/N#: 334A7213P005
• Power: 800 HP
• Voltage: 2300/4000
• Phase: 3
• Frequency: 60
• Amperage: 177/102 A
• Speed: 3570
• Frame: 8211Z
• Enclosure: WPI
• Service factor: 1.15
• Shaft size: 60 MM DIA X 145 MM LG
• Mount: Foot
• Length: 1.5 M
• Insulation: F
• Temperature rating: 90 DEG C
• Standard/Specification: EN60034
• Additional data: FOR CRANKING (88CR)

Quotation Information

For quotation requests, provide the exact model and part numbers listed above. Tecliaison can use these details to identify the product information you need. Price, stock, condition, delivery, compatibility, and replacement information were not provided, so this listing does not state them.
