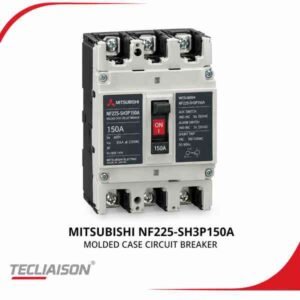

Mitsubishi Molded Case Circuit Breaker NF225-SH3P150A

MITSUBISHI (LM/FM) NF225-SH3P150A molded case circuit breaker, 150 A, three poles.

Product Overview

The molded case circuit breaker NF225-SH3P150A from MITSUBISHI (LM/FM) has a rated amperage of 150 A and a three-pole configuration. The supplied specifications list a 660 VAC voltage rating and an interrupting capacity of 85 kA at 220 VAC. This circuit breaker uses magnetic trip protection and supports surface mounting.

The listed configuration includes auxiliary and alarm switches, along with a shunt trip. The supplied details also specify line and load pressure lug connections and a 225 A frame size.

Product Details

• Manufacturer: MITSUBISHI (LM/FM)
• Product Type: Molded Case Circuit Breaker
• Model / Part Number: NF225-SH3P150A
• Amperage: 150 A
• Frame Size: 225 A
• Connection: Line and load pressure lug
• Interrupting Capacity: 85 kA at 220 VAC
• Number of Poles: 3
• Standard / Specification: IEEE 1458
• Trip Type: Magnetic
• Voltage: 660 VAC
• Mounting: Surface
• Auxiliary Switch: 1NO-1NC, 5 A, 250 VAC
• Alarm Switch: 1NO-1NC, 5 A, 250 VAC
• Shunt Trip: 1 NC, 100–120 VAC
• Frequency: 50–60 Hz

These details reflect the supplied product information. Confirm the complete electrical ratings and accessory configuration against the manufacturer’s documentation before selecting the breaker for a specific installation.

Quotation Information

Contact Tecliaison to request a quotation for the MITSUBISHI (LM/FM) molded case circuit breaker NF225-SH3P150A. Include the model number and required accessory configuration in your enquiry.

Price, stock availability, delivery time, warranty and product condition are not provided. Request confirmation of these details before placing an order.

Why Choose Tecliaison

Tecliaison helps industrial buyers enquire about products using manufacturer names, model numbers and available technical specifications. Provide the NF225-SH3P150A model number when requesting a quotation to help identify the requested item.

Review the breaker’s electrical ratings, mounting requirements and accessory details with your supplier before purchase. This listing uses the supplied information and does not claim additional certifications, compatibility or replacement status.
