200T WLL Heavy Duty D-Shackle – REQ0684176

Heavy Duty D-Shackle, 200T WLL — reference REQ0684176.

Product Overview

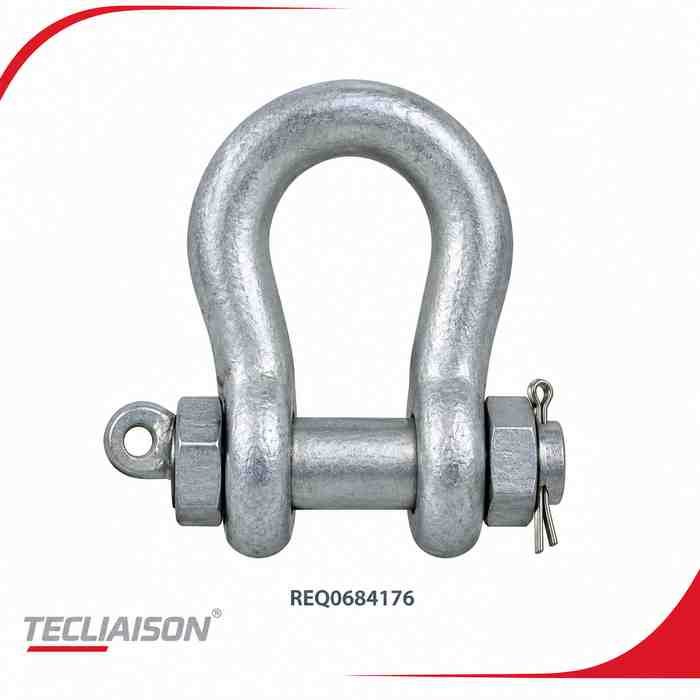

The Heavy Duty D-Shackle is a galvanised lifting shackle with a stated working load limit (WLL) of 200 tonnes. The supplied specifications describe a heavy-duty D-shackle with one lifting eye at the side of the pin, a double-nut arrangement, and a stainless-steel (S/S) cotter pin through the nuts. The item also has a painted finish.

The requirement number is REQ0684176. The supplied details identify the body material reference as GN20307 and the bolt material reference as K8012A.

Product Details

• Product Type: HD D-Shackle
• Requirement / Reference: REQ0684176
• Working Load Limit: 200T WLL
• Inside Width: 240 mm
• Inside Length: 500 mm
• Diameter: 105 mm
• Pin Diameter: 115 mm
• Material / Finish: Galvanised; painted
• Lifting Feature: One lifting eye at the side of the pin
• Fastening Arrangement: Double nut
• Retaining Pin: S/S cotter pin through nuts
• Body Material Reference: GN20307
• Bolt Material Reference: K8012A

The supplied description also states the dimensions as 105 × 115 × 204 × 500 mm. Please confirm the 204 mm dimension and the full dimensional arrangement with the supplier before ordering, as the individual measurements listed above do not explain every value in that sequence.

Quotation Information

Use reference REQ0684176 when requesting a quotation for this Heavy Duty D-Shackle. Ask the supplier to confirm the exact dimensions, material references, finish, and 200T WLL. Request any required product documents and lifting certification separately; the supplied details do not confirm certification.

Please verify the design and suitability with a qualified lifting-equipment professional before use. Do not rely on the product description alone to approve a lifting operation.
