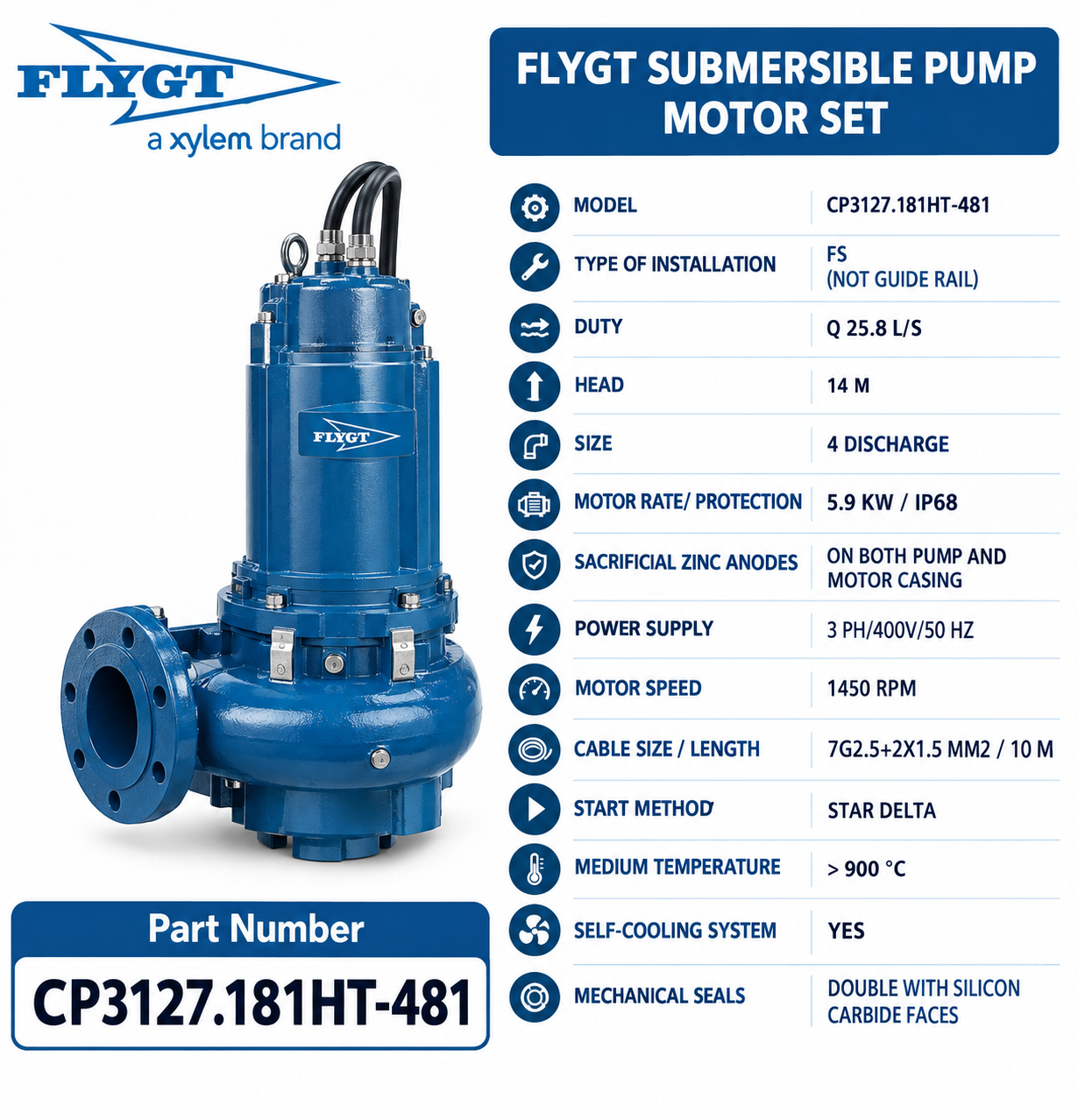

Flygt Submersible Pump CP3127.182 HT 481

Product Overview

Flygt submersible pump is supplied as a FLYGT SUBMERSIBLE PUMP MOTOR SET with the provided model and specification information for CP3127.181HT-481 and CP3127.182 HT 481 3~ 5.9kW 4p. The supplied details describe an installation type FS, specified as NOT GUIDE RAIL, with a stated duty of Q 25.8 L/S and head of 14 M. The supplied information also identifies a size 4 discharge, a 5.9 KW motor rating with IP68 protection, and sacrificial zinc anodes on both the pump and motor casing.

Product Details

• Brand: Flygt
• Manufacturer: Not separately provided
• Product type: FLYGT SUBMERSIBLE PUMP MOTOR SET
• Model: CP3127.181HT-481
• Manufacturer’s Part Number:• Quick Code: 009690
• Type of installation: FS, (NOT GUIDE RAIL)
• Duty: Q 25.8 L/S, Head 14 M
• Discharge: Size 4
• Motor rate / protection: 5.9 KW / IP68
• Power supply: 3 PH/400V/50 HZ
• Motor speed: 1450 RPM
• Cable size / length: 7G2.5+2X1.5 MM2 / 10 M
• Start method: STAR DELTA
• Medium temperature: > 900 °C
• Max flow rate: 49 l/sec
• Max head: 22 m
• Outlet connection: DN150 Flanged
• Typical flow rate: 31 liters/second
• Typical head: 12.5 m
• Variable speed: No
• Float switch: No

Quotation Information

For quotation enquiries, refer to the supplied product identification, including CP3127.181HT-481, CP3127.182 HT 481 3~ 5.9kW 4p and Quick Code 009690. The supplied specifications should be reviewed against the applicable manufacturer documentation before quotation. Price, stock availability, condition and delivery information were not provided.
