Diaphragm Kit 939401S151390 | HONEYWELL

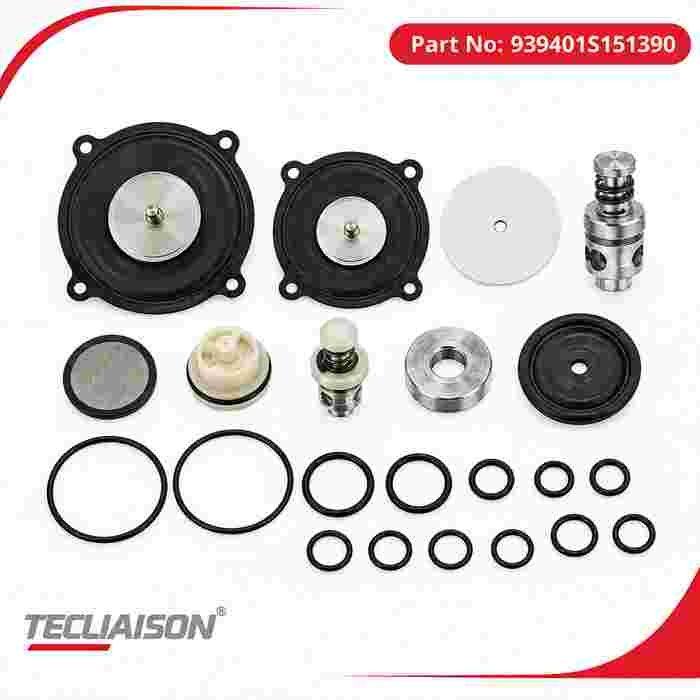

HONEYWELL Diaphragm Kit 939401S151390 — Tecliaison product reference image.

Product Overview

Diaphragm kit 939401S151390 from HONEYWELL is a kit for a valve. The supplied details identify it with the OEM part equipment name “VALVE” and the equipment name “RELIEF VALVE TYPE.” The design/operation is listed as “PILOT OPERATED.” The stated usage is “GAS, SKID CONTOL VALVE.” This product page keeps the supplied part numbers and equipment details clear for quotation and reference. The kit comprises 1PC each of the listed parts. These include diaphragms, O-rings, a filter, valves, a diaphragm disc, a seat, and a nut. Each listed item has its own position and part number. The main MFG PART NUMBER is 939401S151390, and the brand is HONEYWELL.

Product Details

• Product type: DIAPHRAGM KIT
• OEM part equipment name: VALVE
• MFG PART NUMBER: 939401S151390
• Brand: HONEYWELL
• Equipment name: RELIEF VALVE TYPE
• Design/operation: PILOT OPERATED
• Serial number: 20110334305
• Usage: GAS, SKID CONTOL VALVE
• WD: 8 TO 60 BAR
• WDS: 20-50 BAR
• Kit quantity: 1PC each of the listed components

The kit components are: DIAPHRAGM, POS.11, P/N:9303004112450; O-RING, POS.16, P/N:8401012401014; O-RING, POS.17, P/N:8401010801013; DIAPHRAGM, POS.21, P/N:9303004151780; FILTER, POS.22, P/N: 8103004112130; O-RING, POS.23, P/N:8401006801000; VALVE, POS.29, P/N:9303504141450; DIAPHRAGM DISC, POS.31, P/N:8103004112110; O-RING, POS.34, P/N:8401031501026; O-RING, POS.36, P/N:8401004501008; VALVE, POS.37, P/N:8103004133530; SEAT, POS.39, P/N:8103004142690; O-RING, POS.59, P/N: 8401003701007; O-RING, POS.62, P/N:8401031501026; O-RING POS.63,P/N:8401039402129; O-RING POS.102, P/N:8401010802111; DIAPHRAGM, POS.113, P/N:9303004138590; NUT, POS.120, P/N:8103004142700; O-RING, POS.121, P/N:8405003701007; O-RING, PO.122, P/N:8401059903229.

Quotation Information

Diaphragm kit 939401S151390 includes the component details listed above. For a quotation, use the exact MFG PART NUMBER and the supplied component part numbers. Tecliaison can review the information you provide and use the stated product details for quotation reference. This listing does not provide price, stock, condition, delivery, certification, or compatibility details.
