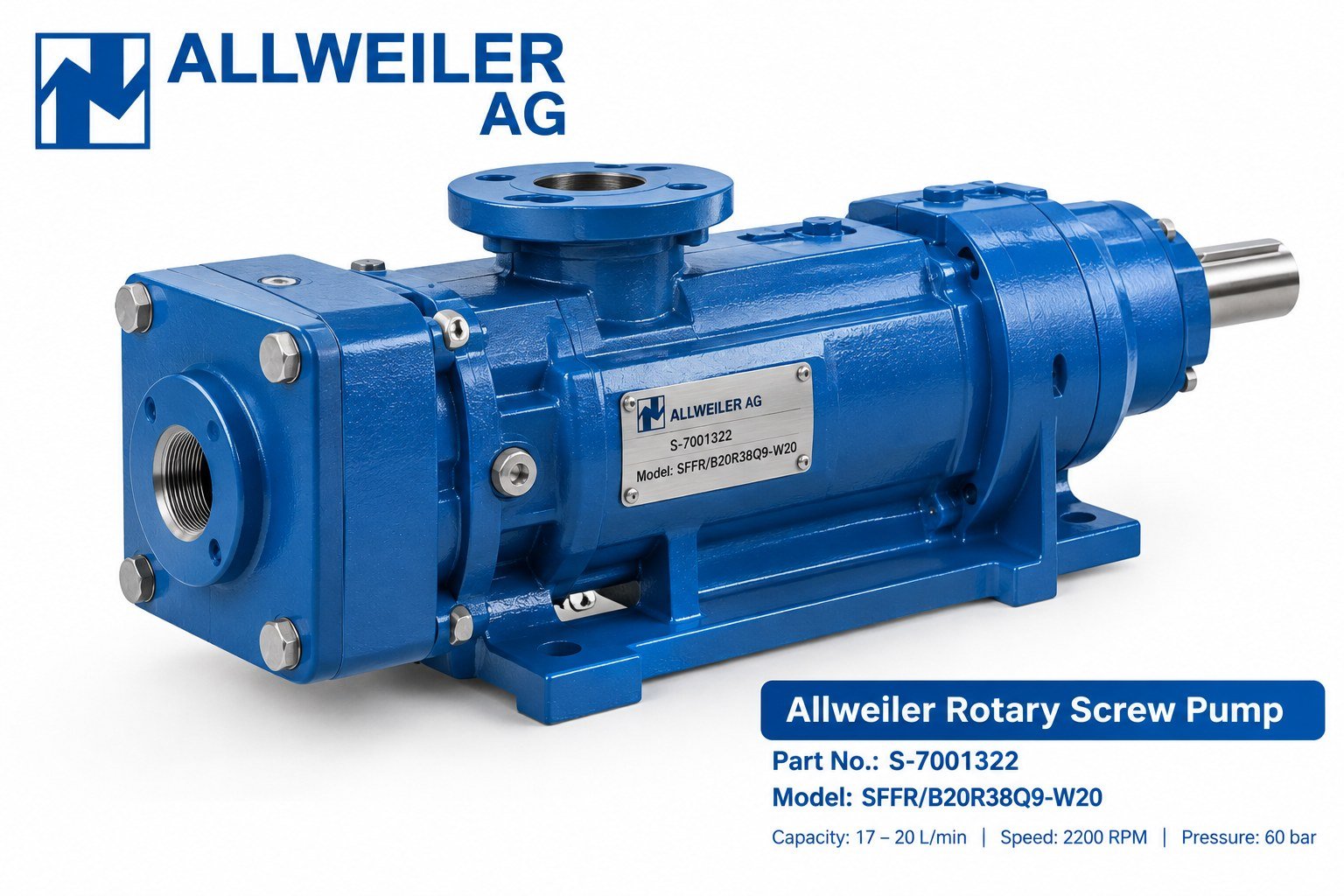

Allweiler AG Rotary Screw Pump S-7001322

Product Overview

The Allweiler AG rotary screw pump S-7001322 is an industrial pump described in the supplied material purchase order information. It is identified as a screw-driven rotary pump for hydraulic oil, with a stated capacity of 17 to 20 L/min and a pressure rating of 60 bar. The supplied details also identify the pump model as SFFR/B20R38Q9-W20.

The product information specifies a 2.5 to 2.6 kW motor as the driver requirement, while the additional notes state that the pump is supplied or required without a motor. Please refer to the original equipment requirements when confirming the exact configuration.

Product Details

• Manufacturer: ALLWEILER AG
• Product type: Rotary screw pump
• Part number: S-7001322
• Model: SFFR/B20R38Q9-W20
• Process fluid: Hydraulic oil
• Capacity: 17 to 20 L/min
• Speed: 2200 RPM
• Pressure rating: 60 bar
• Driver information: 2.5 to 2.6 kW motor
• Motor configuration in supplied notes: Pump without motor
• Standard/specification: DIN EN ISO 14847
• Additional application information: Hydraulic system, ratcheting for torque converter
• Torque converter type: EL 7-5ZGMT.3
• Related equipment information: VOITH, Block C, D, F, Type: Ratchet
• Inlet connection: Bolted
• Outlet connection: Bolted
• Site reference: PP9 extension units

The details above reflect the supplied product data. They should be checked against the equipment documentation before ordering. No replacement part number or replacement status has been provided.

Quotation Information

For a quotation for the Allweiler AG rotary screw pump, submit the part number S-7001322 and model SFFR/B20R38Q9-W20 with your enquiry. Include the stated hydraulic oil service, capacity, speed, pressure rating, connection details and the requirement for a pump without a motor so the requested configuration can be reviewed.

Price, stock availability, product condition, delivery time and warranty information have not been provided. Confirm these points directly with the sales team before placing an order.

Why Choose Tecliaison

Tecliaison provides a channel for industrial product enquiries and quotation requests. When enquiring about this Allweiler AG rotary screw pump, share the exact part number and model together with your application requirements. This helps the team review the supplied information and respond to the specific product requested.

Please verify all technical and configuration details against your original equipment records before confirming suitability.
