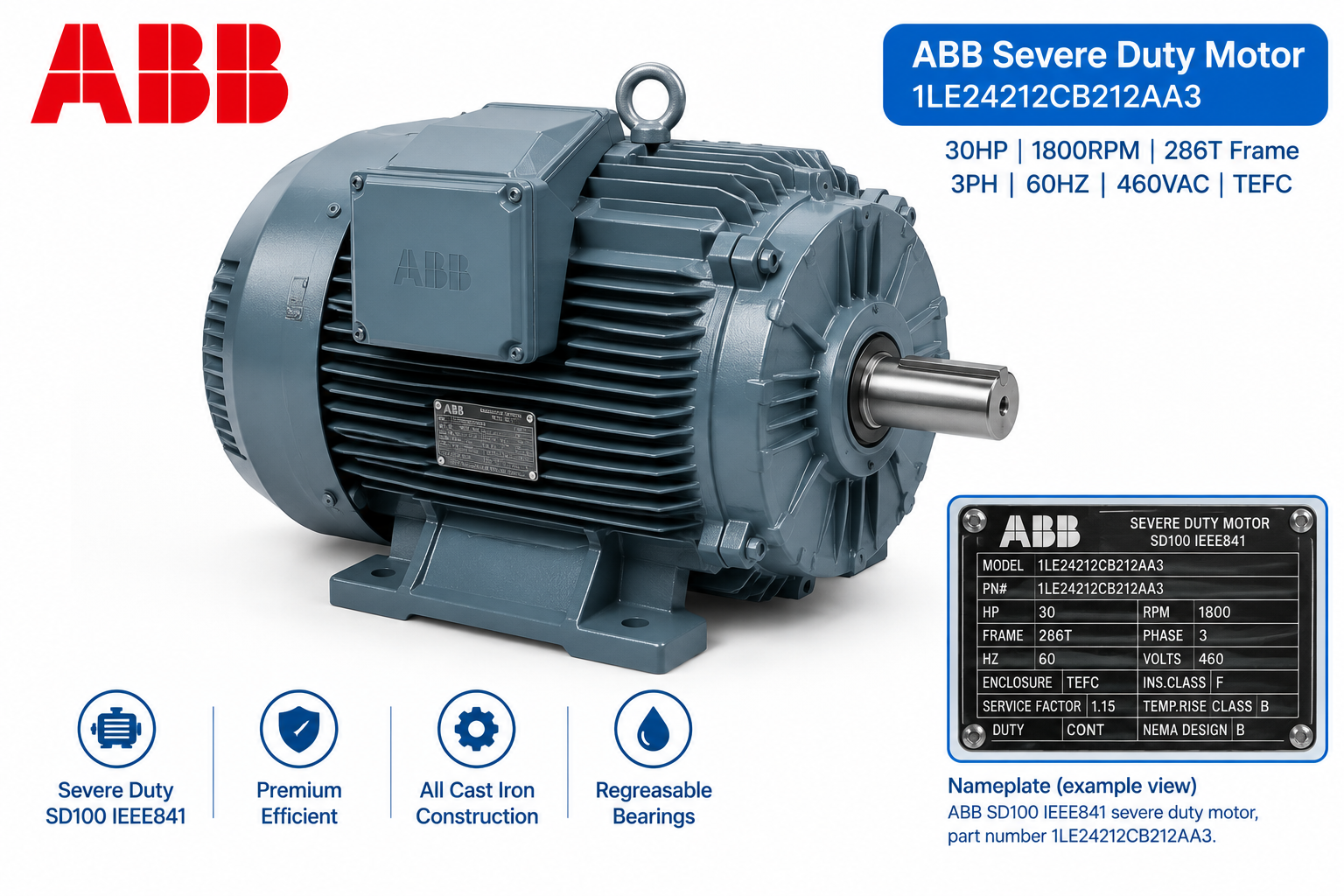

ABB severe duty motor 1LE24212CB212AA3 – 30HP 1800RPM

ABB severe duty motor 1LE24212CB212AA3 is supplied as a 30HP, 1800RPM electric motor with a 286T frame, three-phase configuration, 60HZ frequency and 460VAC voltage. This  motor as an ABB SD100 IEEE841 severe duty motor with a TEFC enclosure.

The motor having Class F insulation, Class B temperature rise, a 1.15 service factor, 40C ambient rating and continuous-duty operation. It is also identified as NEMA Design B and as having an all-cast-iron construction.

The  motor as Premium Efficient, Severe Duty, with regreasable bearings and Inpro Labyrinth Seals at the D.E. and N.D.E. locations. The stated warranty is 5 years.

Product Details

– Manufacturer/Brand: ABB

– Product type: Severe Duty Electric Motor

– Series/Type: SD100 IEEE841

– Horsepower: 30HP

– Speed: 1800RPM

– Frame: 286T

– Phase: 3PH

– Frequency: 60HZ

– Voltage: 460VAC

– Enclosure: TEFC

– Insulation: Class F

– Temperature Rise: Class B

– Service Factor: 1.15SF

– Ambient: 40C

– Duty: Continuous Duty

– NEMA Design: B

– Construction: All Cast Iron

– Efficiency: Premium Efficient

– Bearings: Regreasable Bearings

– Marine Duty: IEEE45 Marine Duty

– Protection: IP55

– Hazardous-area information supplied: Class 1 Groups A,B,C,D; Class 2 Grps F,G, Division 2

– Temperature Code: T3

– Inverter Duty: 4:1 CT, 20:1 VT

– Weight: 469Lbs.

– Bearing Seals: Inpro Labyrinth Seals D.E. & N.D.E.

– Specification Number: Spec#A7B82000337800

– Part Number: PN#1LE24212CB212AA3

– Warranty: 5 years

Quotation Information

For a quotation, reference the exact part number PN#1LE24212CB212AA3 together with the supplied specification number Spec#A7B82000337800.
